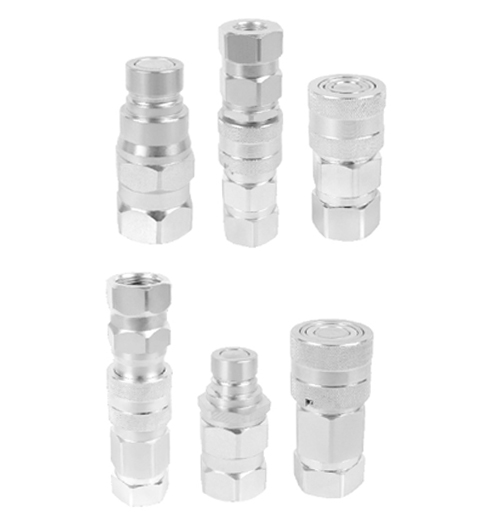

QC-F Flat Face
* Interchangeable with quick couplings meeting ISO 16028 dimensional requirements while exceeding performance requirements
* Easy to clean, reducing the inclusion of contamination inside the hydraulic circuit.
* Minimum fluid loss during disconnection, reducing fluid loss to the environment.
* Minimum air inclusion during connection / disconnection.
* The modular design allows flexibility with a wide range of configurations.
* Compact design.
* Safe and simple to use.
QC-F Flat Face
Interchange: ISO 16028
Valve System : Flat Valve
Material : High Strenght Carbon Stell
Threads avalaible : BSP-NPT
Avaliable Sizes : 1/2" to 1" 1/4
Standard seals : Nitrile NBR
Working Temperature : -20 C + 100 C
Operating Pressure: Up to 380 Bar
Folw Rate : Up to 110 l/min
Locking Mechanism: Locking Ball System +Safety Lock
Usage Fields : Ideally suited for use in hydraulic hand tools, overhead bucket hoists, skid steer loaders, and wherever spillage can constitute a safety or environmental hazard.
