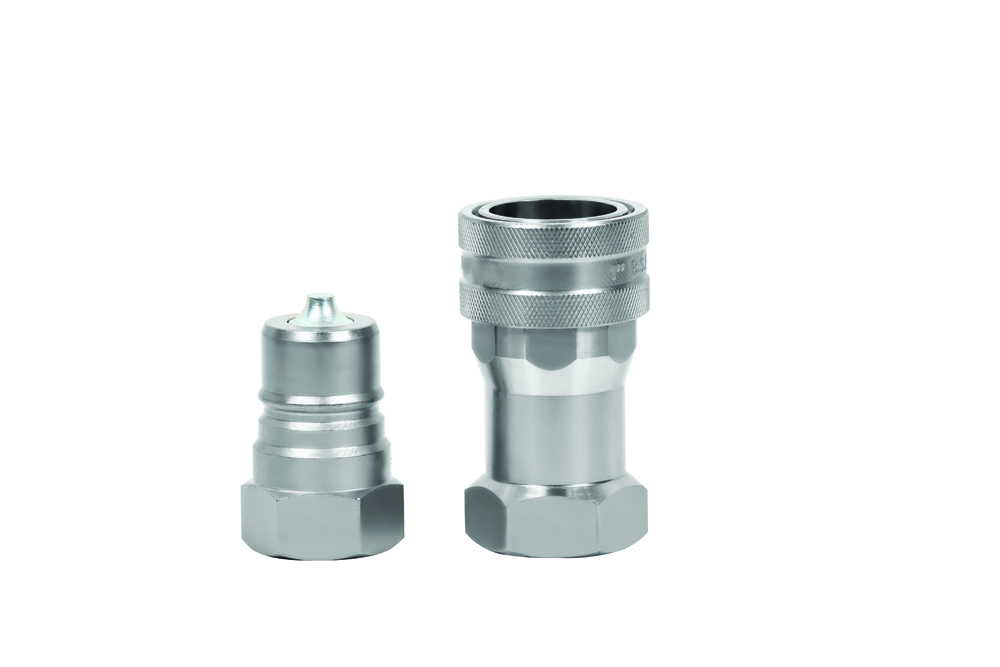

QC (Poppet)
* Poppet valves are mated with a solid metal perch that maintains valve alignment and prevents flow checking.
* Both the coupler' sleeve and the nipple's body are hardened to make the QC series couplings resistant
to damage from brinelling and mechanical shock.
* The durable-ball-locking mechanism ensures a reliable connection every time.
* QC series couplings interchange with couplings meeting ISO 7241-1, Series A
QC (Poppet)
Interchange: ISO 7241-1 A
Valve System : Poppet Type
Material : High Strenght Carbon Steel
Threads avalaible : BSP-NPT-M
Avaliable Sizes : 1/4“ to 2”
Standard seals : NBR
Working Temperature : -30 C + 110 C
Operating Pressure: Up to 350 Bar
Folw Rate : Up to 753 l/min
Plating: Electroless Nickel
Locking Mechanism: Locking Ball System
Heat Treatment : Male Taper
Usage Fields : QC series offers worldwide interchangeability and the availability a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.
